Insulated copper power bus bar

Insulated Copper Power Bus Bar are made of T2 copper, they can be customized in different shapes and sizes. 99.9% copper content are high conductivity.The copper bus bars are widely used on electrical and new energy vehicles.

  • Material:： T2 copper 99.9%
  • Surface Plating:： Nickel, tin or sliver plated etc
  • Edge Type:： Round, square,semicircle etc
  • Hole Type:： Round, oval-shaped etc
  • Insulation Type:： Shrink sleeves, pvc dipping etc

Insulated Copper Power Bus Bar


Details:

Material: T2 Copper with 99.9% Copper  Content

Electrical Conductivity:  58.0×10  (100% IACS standard)

Size: OEM/ODM Service

Volume Resistivity: ρ20° 0.01724 Ω?mm/m

Test:  Conductivity Testing, Temperature Rise Testing, Bending Testing etc

Surface Plating:  Bare cooper, 3-12um tin, nickel or silver according to busbar's size

Load Voltage:  220 V to 10 KV according to size

Insulation layer: PE heat shrinkable sleeves

Photos Show:

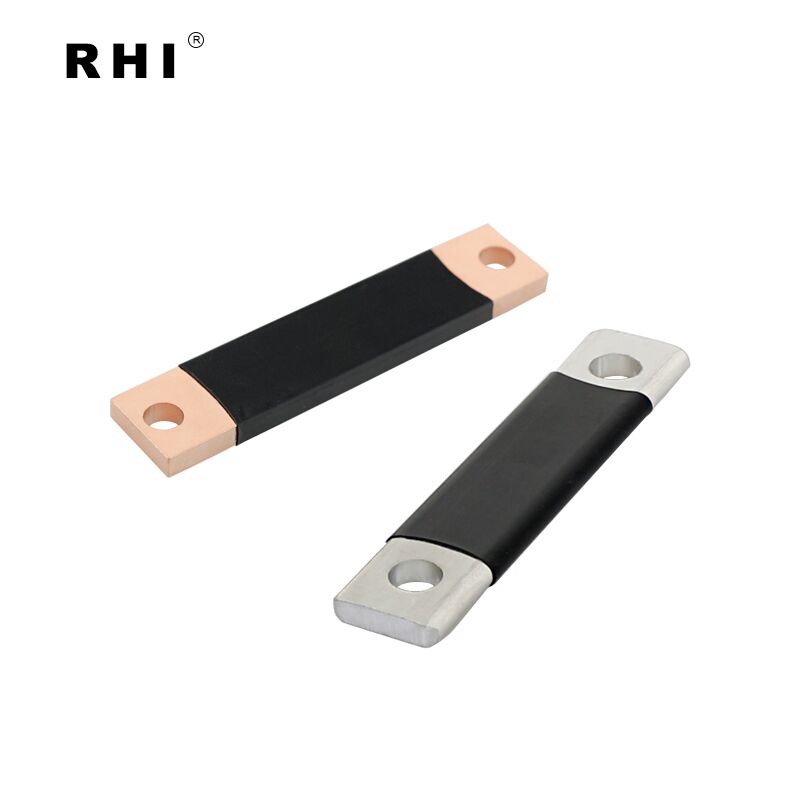

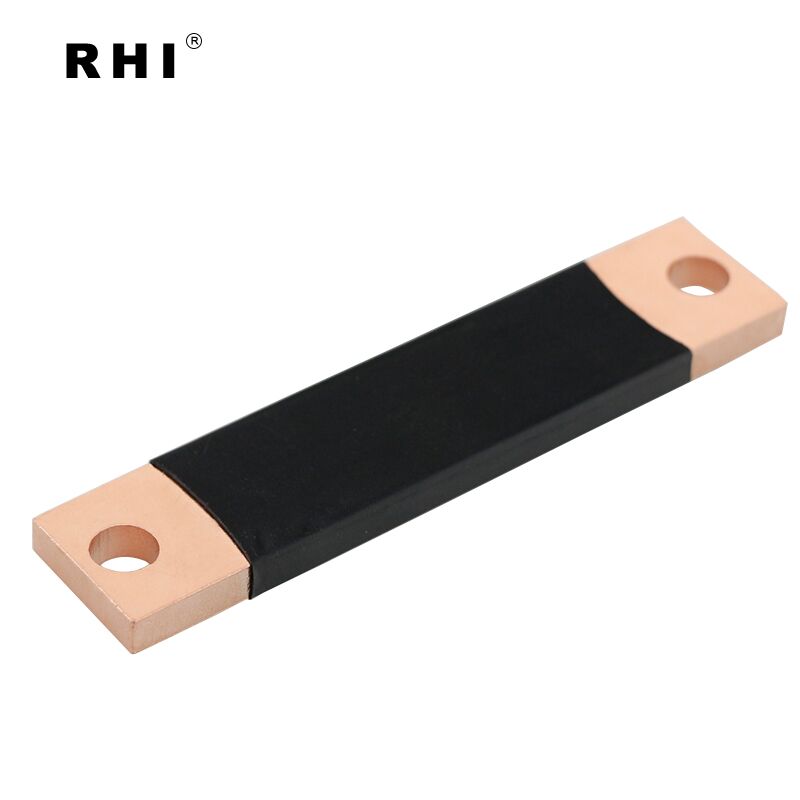

solid busbar connector (1).jpg

Busbar Types and Covers Kits :

Nickel Plated BusbarTinned Copper Busbar Flexible Laminated Busbar

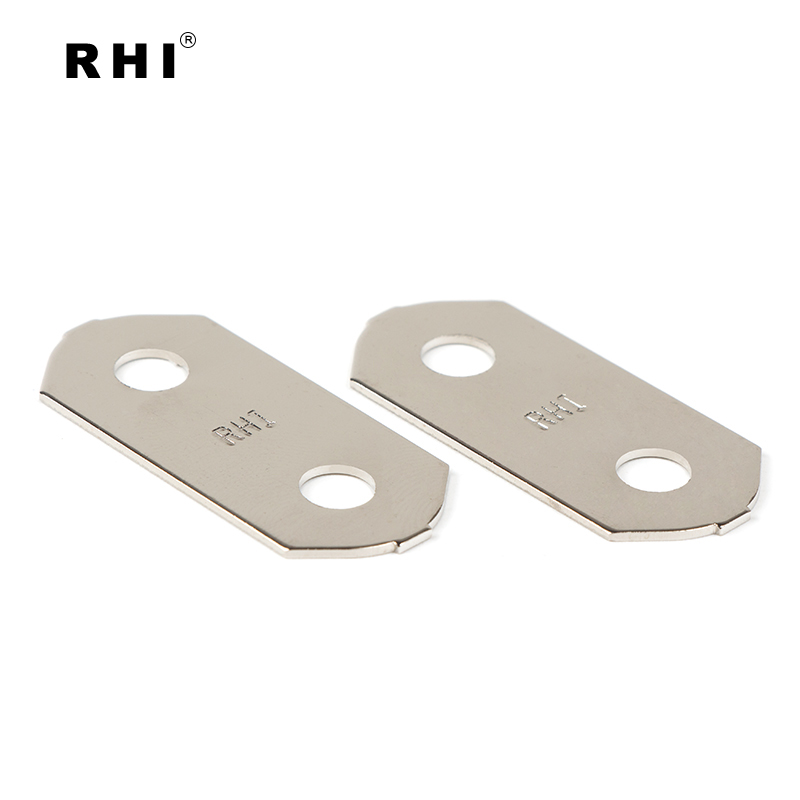

nickel plated battery busbar.jpg

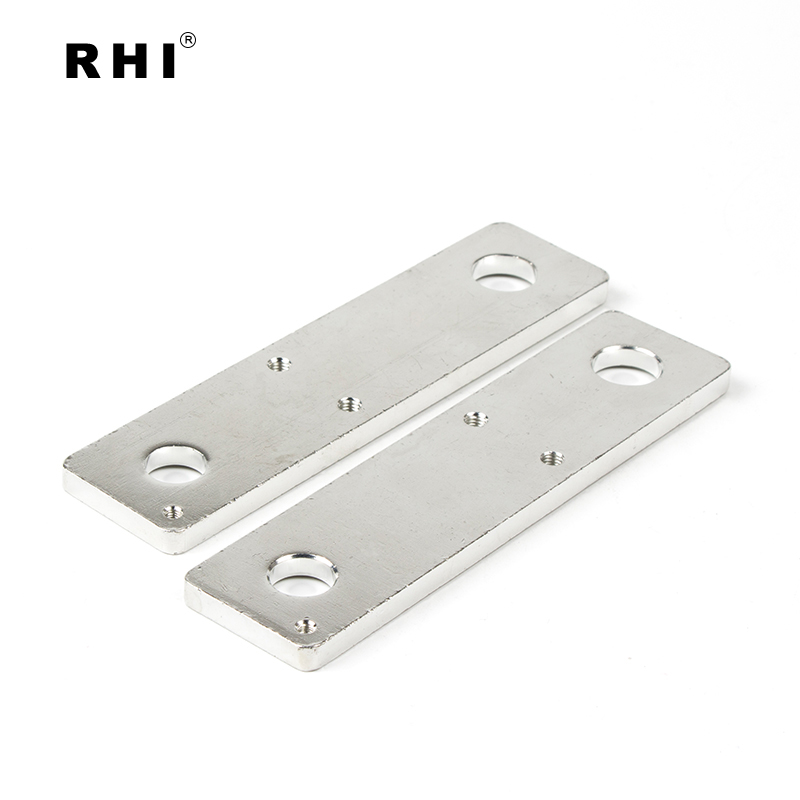

tin plated copper busbar.jpg

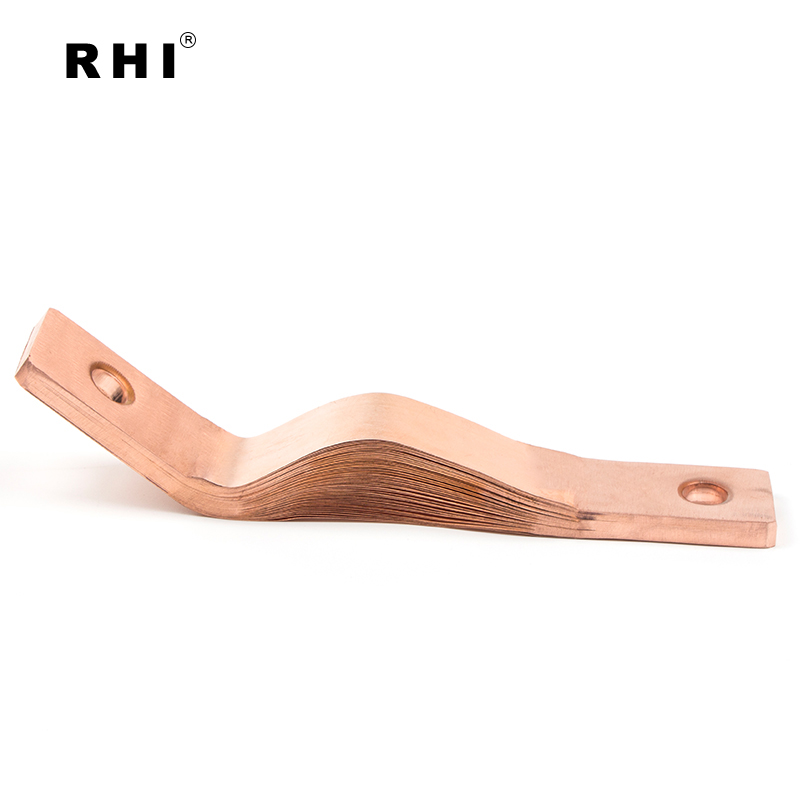

flexible laminated shunts copper busbar.jpg

Insulated Busbar with SleevingInsulated Busbar with DippingInsulated Busbar with Coating

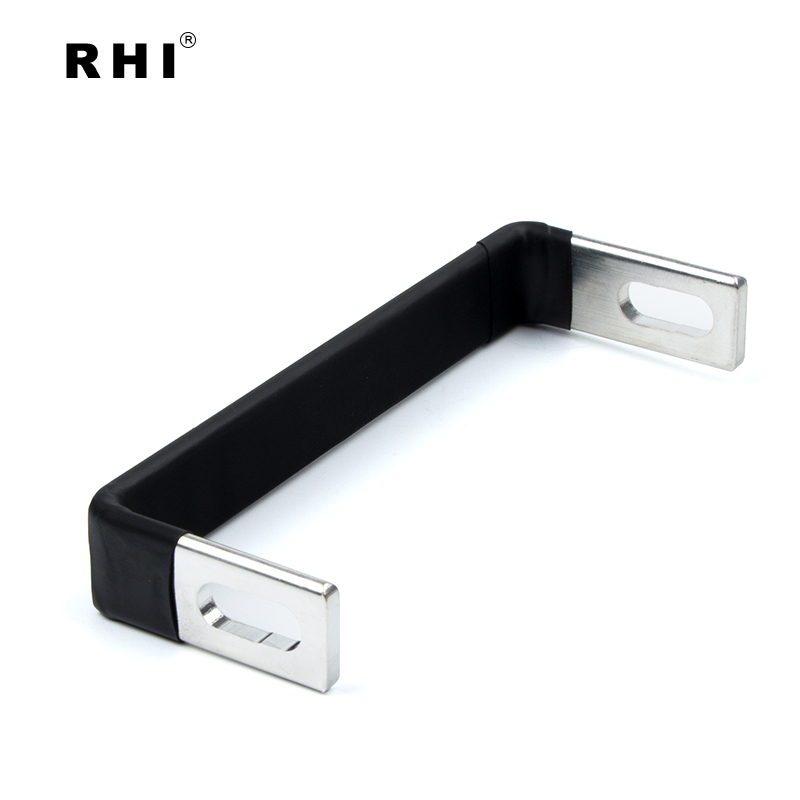

Insulated Busbar.jpg

Insulated busbar with dipping.jpg

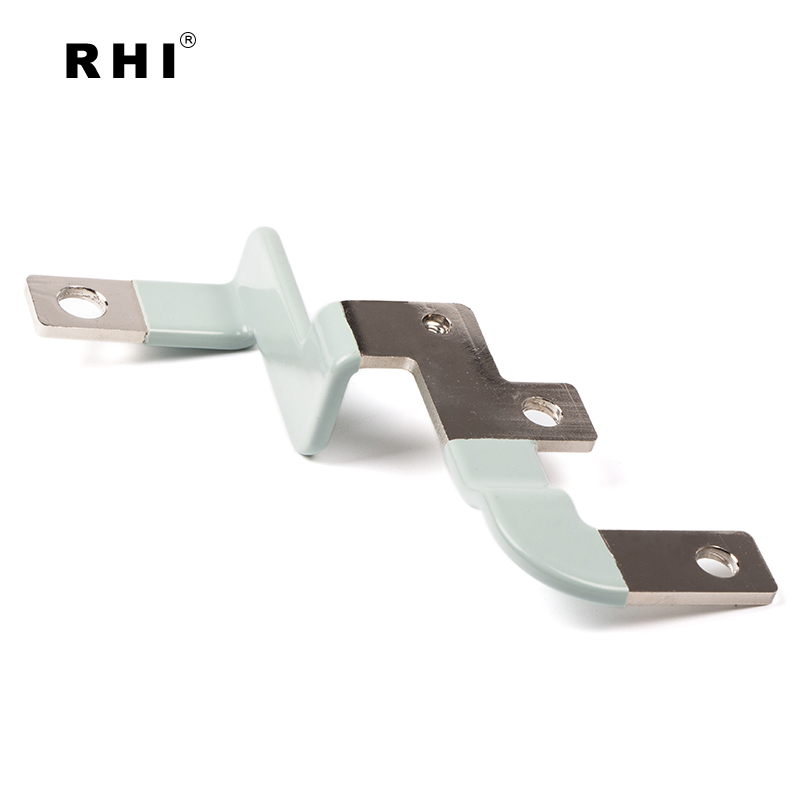

busbar with coating.jpg

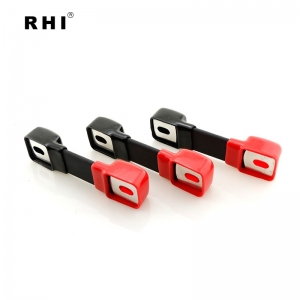

This series of pvc busbar insulated covers are suitable for busbar with insulation protection and flame retardancy.

Jointed Type Bus Bar CoversSingle Type Busbar Cover Buckle  Busbar Covers

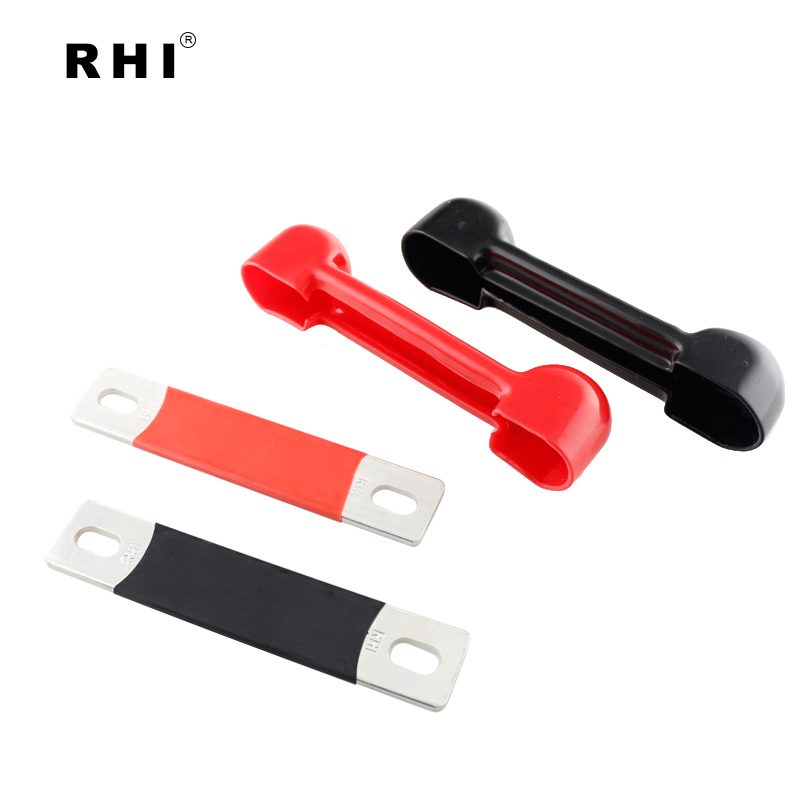

    • copper busbar with covers.jpg

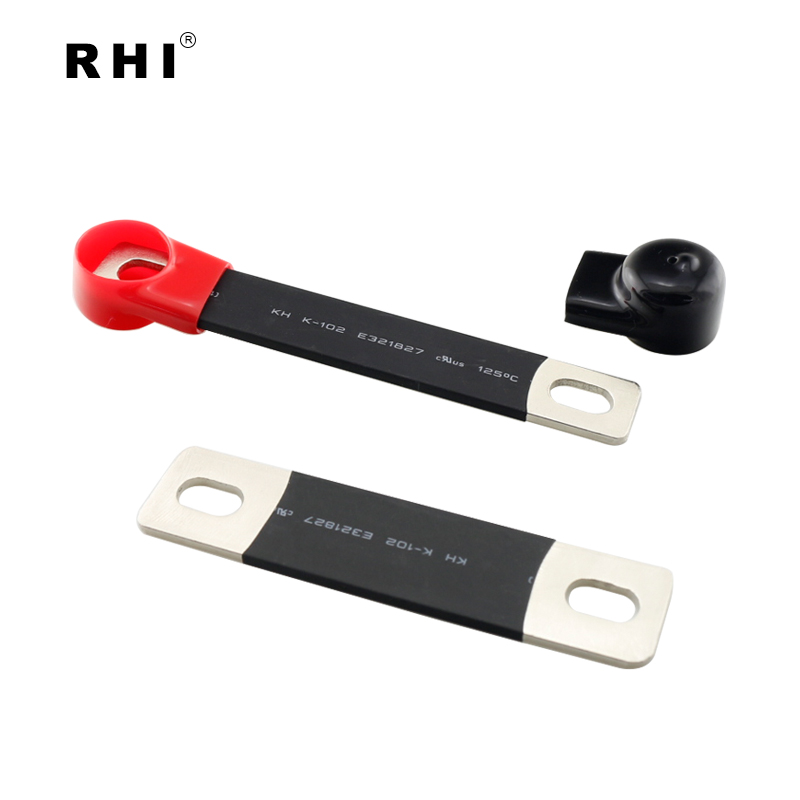

    • Busbar Covers.jpg

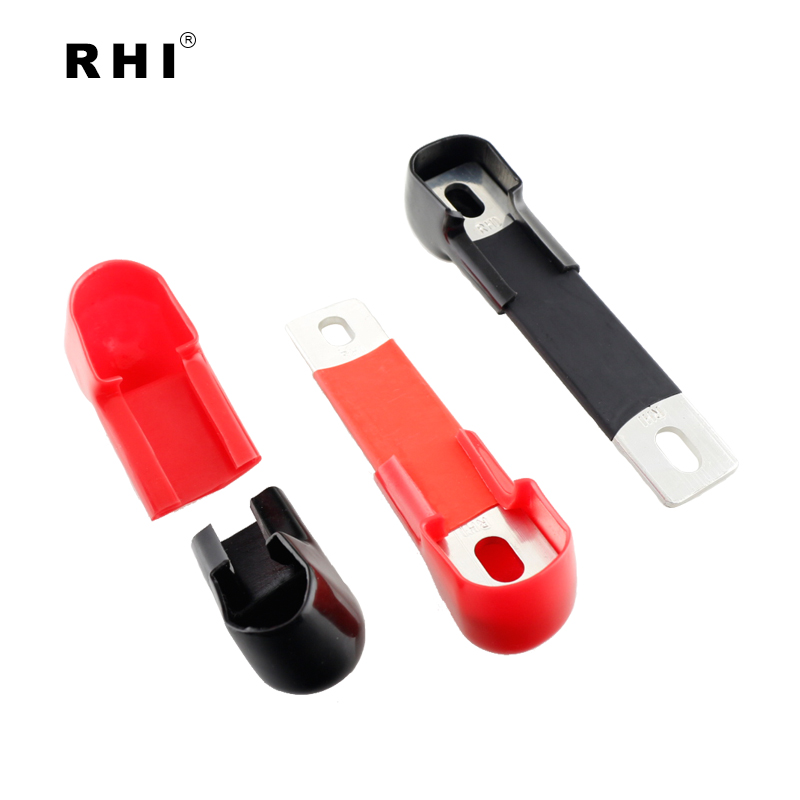

    • busbar cover.jpg

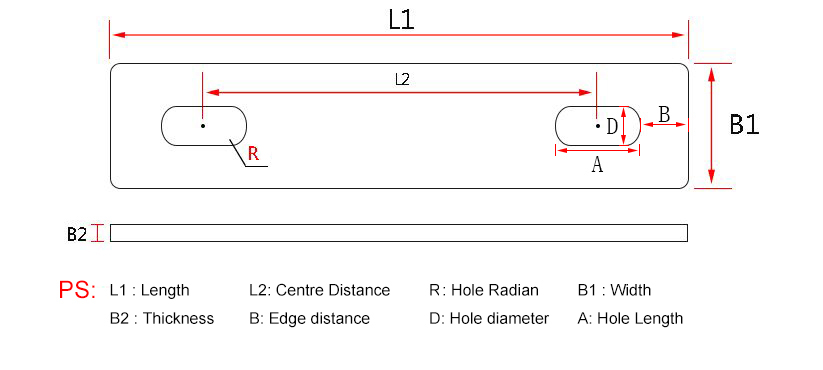

Bus Bar Drawing :

Solid tinned copper busbar.jpg


All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.

We will quote for you in 1-2  working days !


Technics Supports & Usage:

Techinics Abilities

Cutting, Punching, Twisting, Bending,

Plating, Riveting,Dipping, Coating,

Welding, Stamping,Tapping, Brazing,

Drilling, Milling, Sawing etc

Plating Optional

Nickel Plating
Silver Plating
Tin Plating

Insulation TypeEpoxy Coated

PVC Dipping Coated

Heat Shrink Sleeves Adsorption

Hole ShapeRound Hole, Oval-shaped or Others
Edge ShapeFull Round Edge, Semicircle, Square Corner
Usage

1)New Energy Vehicles

2)Battery Packs;

3)Power Supply Room;

4)Power Distribution Equipments;

5)Switchboards;

6)Panel Boards;

7)Low and Medium Voltage Switchgear;

8) Electric Bus, High Speed Train,

9)High Current & Control Equipment;

10)Busway Systems etc.

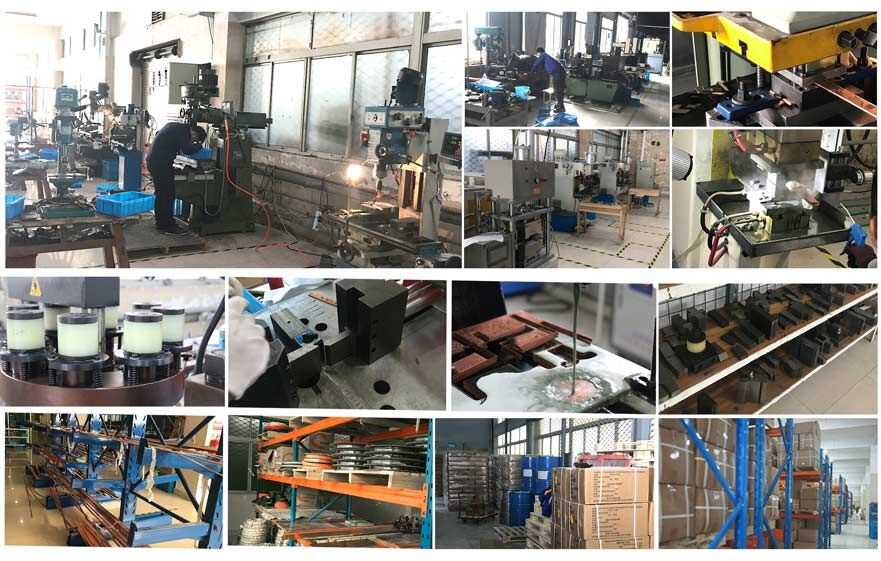

Busbar Technics Shows:

Technics Show.jpg

Usage Show:

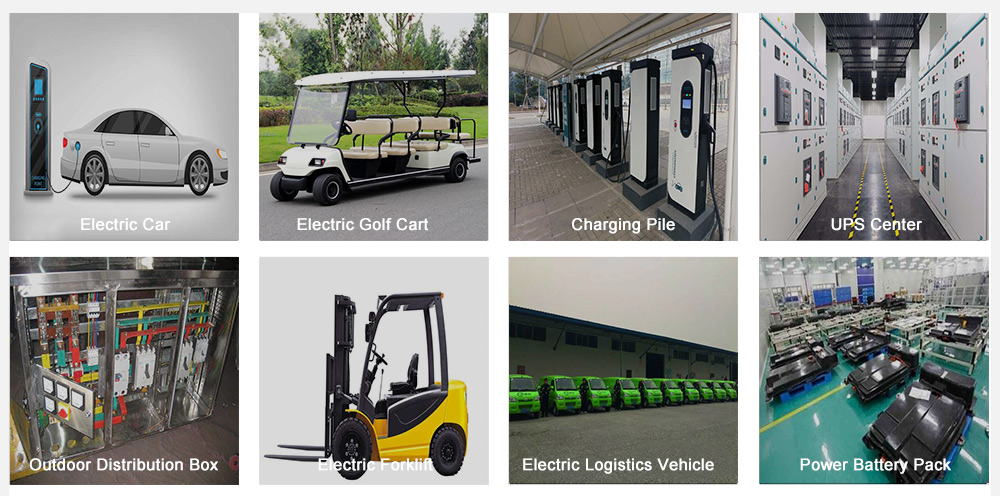

copper busbar application-2.jpg


Our Advantages:


Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars

Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.

Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.

Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.

Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.
